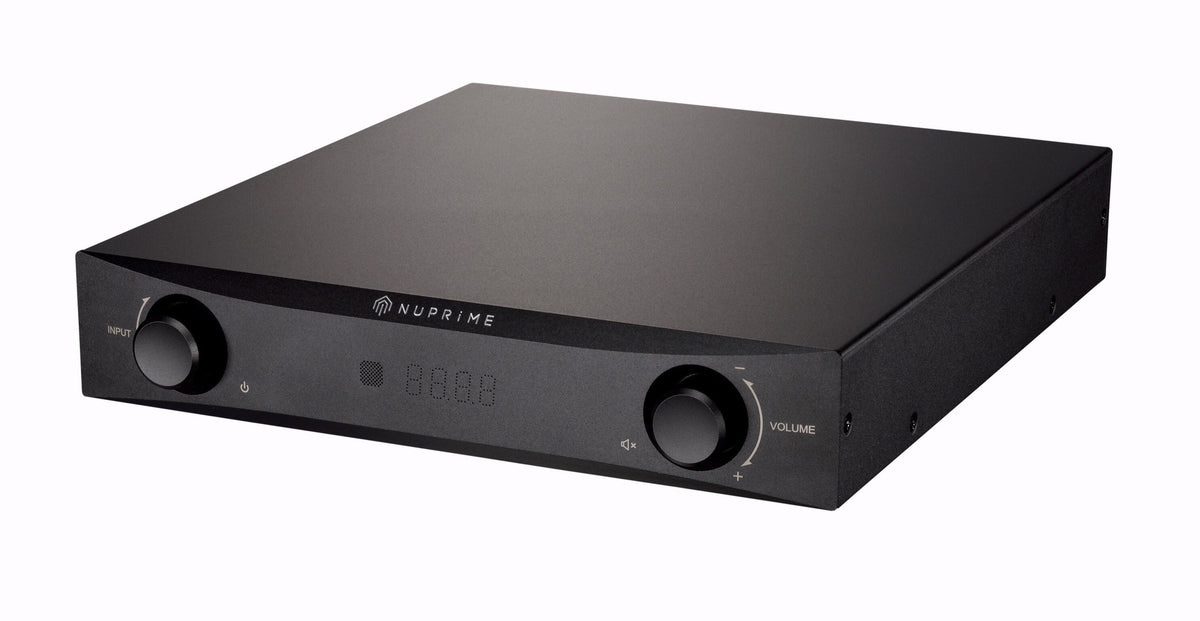

NuPrime IDA-8 Integrated Amplifier

$1,199.99

  • Description

Description

Ultra Low Noise Class A+D Integrated Amplifier with DAC and Wireless Port

NuPrime's new Class A+D hybrid amplification technologies deliver the substance and warmth of Class A amplification and the efficiency and speed of Class D technology in a milieu of un-measurable noise. The IDA-8's spacious, transparent, dynamic and luxuriously textured soundstage has to be heard to be believed.

* Hi-Res bluetooth dongle for wireless streaming is included.

Features

  • Ultra-Linear Class A Module (ULCAM) achieves audiophile-quality sound with Class-D’s dynamics, speed and efficiency.  Extraordinary result of THD+N lower than 0.0015% and S/N ratio of -130dB for the preamp stage.
  • NuPrime SRC IC chip provides FPGA processing with ultra-low jitter and distortion
  • NuPrime vibration-free isolation feet (patent pending*)
  • State-of-the-art DAC supporting USB PCM 384 and DSD256, that is also capable of decoding DoP formats via coaxial and optical inputs
  • Analog line-out (can be used as Sub Out)
  • Extension port for Bluetooth dongle (included) or future release of optional Wi-Fi dongle
  • Full microprocessor control with memory retention
  • Four digital inputs and one stereo input for complete system flexibility
  • Supports DSD native playback by ASIO2.1 and DoP method
  • Ultra-low-noise JFETs in the input stage for the lowest possible noise floor
  • Volume adjustment in 99 precise 0.5dB increments
  • Advanced, thin-film switched-resistor ladder network for controlling volume, with a single resistor in the signal path at any volume setting
  • Individually adjustable volume on each input for precise level matching of sources
  • Exclusive driver software for Windows
  • Standard driver software for Mac
  • Asynchronous transfer mode
  • Very low power consumption on Standby Mode
  • Available in black or silver anodized aluminum finish
  • Includes remote control

Specifications:

Inputs:

    • 1 x USB PCM / DSD Digital (PCM up to 384kHz & DSD up to DSD256 )
    • 1 x Coaxial Digital S/PDIF (PCM up to 192K supporting DoP format DSD64)
    • 1 x Optical Digital S/PDIF (PCM up to 192K supporting DoP format DSD64)
    • 1 x Bluetooth or WiFi receiver module (optional).
    • 1 x Analog Stereo RCA (analog input will be digitized)

Outputs:

    • 1 x pair of stereo speaker (binding posts) output
    • 1 x pair of stereo RCA (2V), variable (volume controlled) output
  • USB Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz and DSD 2.8MHz, 5.6MHz, 11.2MHz
  • S/PDIF Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96, 176.4KHz, 192KHz, 384KHz (Coaxial)
  • Maximum Sampling Rate: 32-bits
  • Bit Resolution: 16-32-bits
  • Power output: 100W x 2 @ 8 Ohms; 100W x 2 @ 4 Ohms
  • THD+N: 0.005%
  • SNR = 95dB
  • Peak Output Power: 280w
  • Frequency Response: 10Hz to 50kHz
  • Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)
  • Weight: 4.3Kg
  • Worldwide AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) With Voltage Select Switch
  • AC Fuse: Slow-blow, 3A, 250VA
