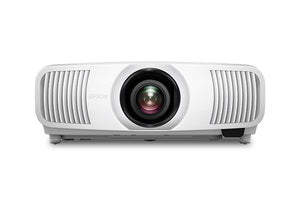

Epson LS 11000 4K PRO-UHD Laser Projector





Projection Perfected.

• 4K PRO-UHD1 Advanced Pixel-Shifting Technology
• Precision Shift Glass Plate Technology
• Epson Picture Processor
• Laser Array Light Source
• 2,500 Lumens of Colour and White Brightness2
• Model: V11HA48020

Interfaces:

2x HDMI® 2.1 (HDCP 2.3); one supporting eARC/ARC 1x USB Type-A (for optical HDMI cable 300 mA maximum power supply only)

1x USB Type-A 5 V, 2.0 A for power and firmware

1x Mini USB (service only)

1x LAN RJ45

1x RS-232c

1x Trigger out (On, Off) 12 V DC, 200 mA maximum

Other Features:

Dynamic Range Support HDR102, HDR10+2, HLG

HDR2 Adjustment 16 steps, real-time

Color Modes Dynamic, Vivid, Bright Cinema, Cinema, Natural Aspect Adjustment Yes (Auto/Full/Zoom)

Frame Interpolation Input up to 4K at 60 Hz, Output up to 4K at 120 Hz

eARC Audio Compatibility LPCM, Dolby® Digital AC-3, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS-HD High-Resolution Audio, Master Audio, DTS:X, AAC Computer Compatibility PC, Mac®

ARC Audio Compatibility LPCM, Dolby Digital (AC-3),

DTS, AAC

Operating Temperature 41° to 95° F (5° to 35° C)

Power Supply Voltage 100 – 240 VAC ± 10%, 50/60 Hz Power Consumption

Normal Mode: 311 W

Medium Mode: 243 W

Eco Mode: 204 W

Fan Noise 22 – 30 dB

Security Kensington® security lock port

Parental Controls Power Button Lock hinders projector from being turned on without parental supervision

Dimensions (W x D x H):

Projector, including feet (excluding cable cover)

20.5" x 17.6" x 7.6" Weight: 28.0 lb Packaging

27.6" x 21.7" x 10.6" Weight: 35.7 lb



Specifications:

Projection System Epson 3LCD

Chip Design (Architecture) 3-Chip

Light Source True Laser Diode Array

Projection Method Front, Front-Ceiling, Rear, Rear-Ceiling Product Color White

Driving Method Poly-silicon TFT Active Matrix, 0.74" wide panel, 12-bit

Output Resolution 4K PRO-UHD1 3840 x 2160 (dual-axis: 1920 x 1080)

Maximum Input Resolution 4096 x 2160

Maximum Refresh Rate 120 Hz

Supported Resolutions 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i

Native Aspect Ratio 16:9 widescreen

Resize Aspect Ratio Support 1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 9:6 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Mode

Color Brightness3 Color Light Output: 2,500 lumens

White Brightness3 White Light Output: 2,500 lumens

Contrast Ratio Up to and over 1,200,000:1, Auto Iris on

White Balance 14-point temperature adjustment

Color Reproduction Full-color (up to 1.07 billion colors)

Size (Projected Distance) 50" to 300" (at 58" to 62'4")

Keystone Correction Vertical/Horizontal: ± 30 degrees

HDR2 Color Processing Full 10-bit

Epson ZX Picture Processor Full 12-bit

Light Source Life5

Normal Mode: Up to 20,000 hours

Medium Mode: Up to 20,000 hours

Eco Mode: Up to 20,000 hours

Projection Lens

Epson VRX Lens 15-element precision glass structure (AGS) Type Powered focus/optical zoom/lens position

F-number 2.0 – 3.0

Focal Length 22.5 – 46.7 mm

Zoom Ratio 1 – 2.1

Throw Ratio Range 1.35 – 2.84

Lens Shift

Vertical: -96.3% to +96.3% (H center, powered) Horizontal: -47.1% to +47.1% (V center, powered) Lens Cover Powered, slide lens shutter

Remote Control

Features Front and rear directional Operating Distance 32 ft (10 m) Operating Angle

Front Right/Left: ± 30 degrees Upper/Lower: ± 30 degrees

Rear Right/Left: ± 30 degrees Upper/Lower: 0 + 60 degrees
